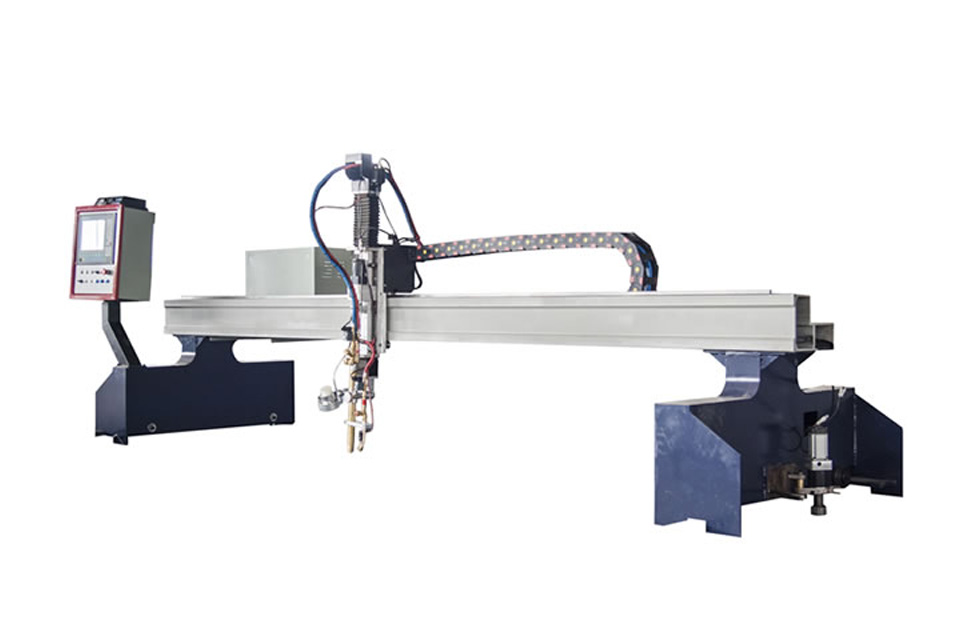

New Multifunction And Cost Effective Gantry Cnc Plasma Cutting Machine / Cnc Plasma Cutter/Plasma Cnc is a professional cutting machine develop by Jinan Zaiqiang New Energy technology company.This Cutting machine is cost less and easy for move.Much suitable for some small and medium company.
| eature | Model | TW-4080 |
| Cutting mode | Plasma/Flame | |
| Series | Gantry Cutting machine | |
| Size | Effective Cutting width | 3000mm |
| Effective Cutting length | 6000mm | |
| Spain of Guide Rall | 4000mm | |
| Length of Guide Rall | 8000mm | |
| Moving speed (Max) | >12000mm/min | |
| Lifter height | >150mm | |
| Function | ARC THC | Optional |
| Control systerm | F2300A | |
| Working woltage | 220V,50Hz | |
| Material of machine | 6063 aluminum housing |
New Multifunction And Cost Effective Gantry Cnc Plasma Cutting Machine / Cnc Plasma Cutter/Plasma Cnc
1, programmable cutting of any plane shape parts.
2, dynamic image display, easy to learn, directly from the computer CAD file into a program file, through the U disk to the host, to achieve image cutting, you can also directly in the host programming settings.
3, rails and sliders using the overall aluminum alloy by high temperature failure drawing die, replacing the old paragraph wheel mode. To ensure the stability of the entire system operation and accuracy
4, the whole longitudinal movement of the machine by the high-precision molds and guide wheel composition, to avoid the vertical and horizontal jitter.
5, support multiple languages can be freely converted.
6, affordable, lightweight and portable, easy to operate, work stability and strong. Effective shielding of plasma high frequency interference.
7, the plasma cutting arc sub-tracking increase, can automatically detect the height of the plate to automatically adjust, effectively avoid the gun and broken arc and other failures, effectively ensure the life of the cutting mouth.
Plasma Cnc Cutting Machine For Metal Cutting
This equipment is suitable for carbon steel, aluminum, stainless steel, galvanized sheet, titanium plate and other metal materials
This product can be applied to a variety of mechanical products processing, advertising industry and handicraft processing
